Three cameras in one for meetings, demonstrations and documents

The IPEVO TOTEM 120 (model NX 120-A) is a multimodal collaboration camera that IPEVO describes as "a conference camera, a demo camera, and a visualiser in one". It is designed for workplace teams who switch between talking to colleagues, demonstrating objects and sharing documents in the same meeting.

It has two 8MP lenses: a 120-degree ultra-wide fixed-focus lens for groups, and an 80-degree autofocus lens for close-up detail. Video reaches 3840 x 2160 at 30fps.

How it helps at work

Most meeting cameras only face the room. The TOTEM 120 extends to 51.5cm and has three modes: Conferencing Mode for eye-level calls, Sharing Mode for showing a wide workspace or demonstration, and Document Camera Mode for sharing paperwork and live annotations. AI Stage automatically frames one or more people in the centre of the image, and AI Voice reduces background noise while enhancing the speaker's voice.

For the workplace

• Huddle rooms: a 120-degree view for small groups around a table.
• Training and demonstrations: show products and processes clearly to remote attendees.
• Document sharing: the 80-degree autofocus lens focuses from 10cm and captures up to US Letter size, close to A4.
• Plug and play: attached USB-C cable for Windows, Mac and Chromebook; works with Teams, Zoom, Google Meet, Webex and more.

Recognition

The TOTEM 120 (NX-120A) received a 2023 Taiwan Excellence Award.

The TOTEM 120 has a two-year IPEVO warranty. For several rooms or desks, contact The Dyslexia Shop for a quotation.

• Dual 8MP lenses: 120-degree ultra-wide lens (fixed focus, about 50cm to 7.5m) and 80-degree lens (autofocus, 10cm to infinity).
• Resolutions: 3840 x 2160 (16:9) at 30fps and 3264 x 2448 (4:3) at 15fps.
• Three modes: Conferencing Mode, Sharing Mode and Document Camera Mode.
• Document capture area: up to tabloid size (11 x 17in) with the 120-degree lens, or US Letter (8.5 x 11in) with the 80-degree lens, which IPEVO recommends for text.
• AI Stage: automatically frames one or more people at the centre of the image.
• AI Voice: reduces background noise and enhances the speaker's voice.
• Microphone: omnidirectional with EMI filter; 16ft (about 4.9m) range; sensitivity -26dBFS.

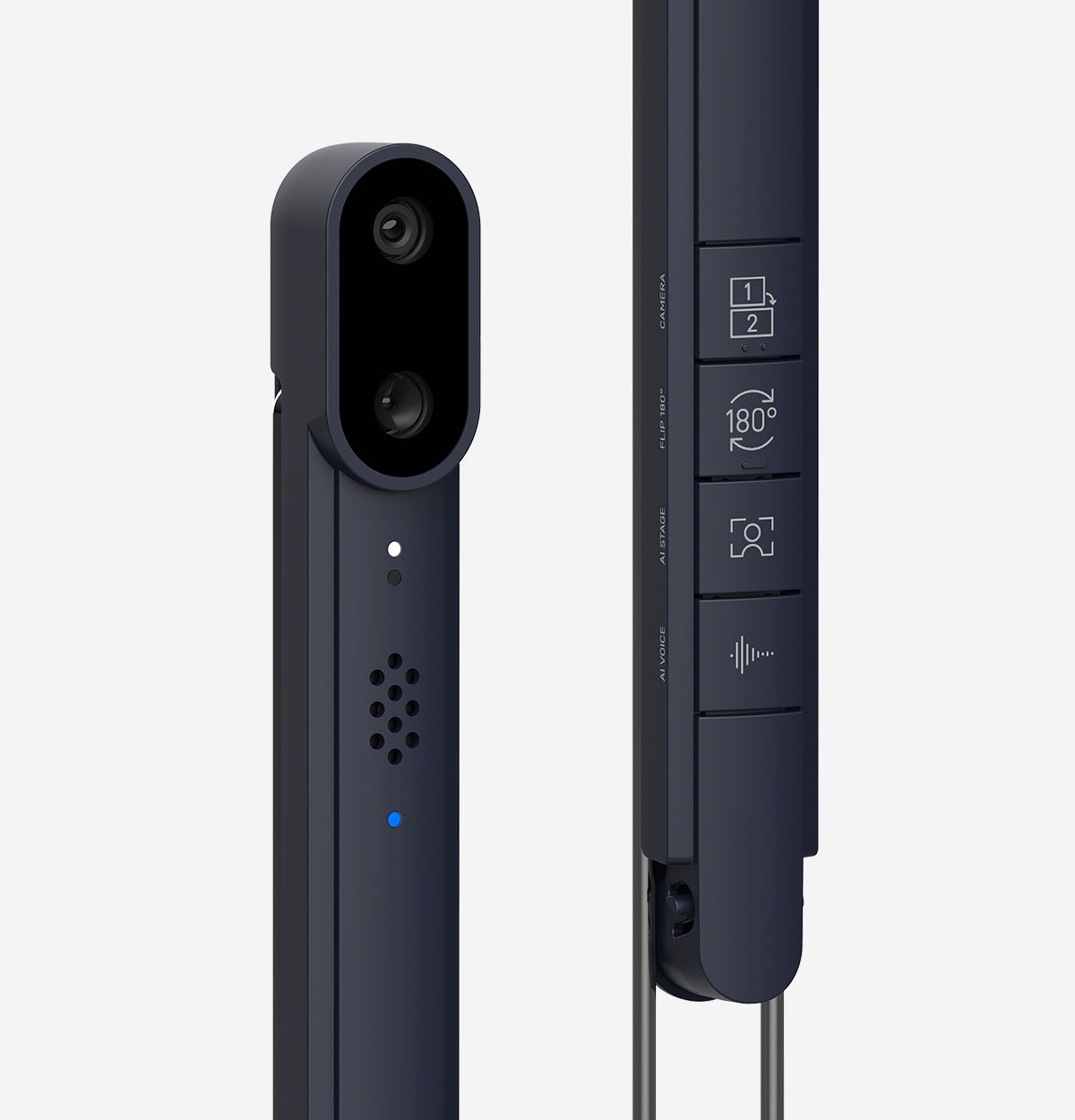

• Controls: camera switch, image rotation, AI Stage and AI Voice buttons.
• Connection: attached USB Type-C cable (1.2m); plug and play on Mac, Windows PC and Chromebooks with a USB-C port.
• Size and weight: 6.0 x 5.4 x 33.5cm, extending to 51.5cm; 450g.
• Colour: dark blue. Model CDVU-11IP.
• Environmental: RoHS compliant and WEEE compliant (recycling rate 92.7%).
• Award: 2023 Taiwan Excellence Award.
• Warranty: two years from the date of purchase (IPEVO).

• Three cameras in one. Conferencing, sharing and document camera modes in a single USB-C device.
• Two 8MP lenses. A 120-degree wide lens for groups and an 80-degree autofocus lens for detail.
• AI that helps meetings. AI Stage frames participants and AI Voice reduces background noise.
• Award-winning design. A 2023 Taiwan Excellence Award winner, with a two-year IPEVO warranty.

What's in the Box

• 1 x IPEVO TOTEM 120 with attached USB Type-C cable (1.2m)
• 1 x quick installation guide

Warranty

Two-year IPEVO warranty from the date of purchase. This does not affect your statutory rights.

Compatibility

Mac, Windows PC and Chromebooks with a USB Type-C port. Minimum requirements: Windows 7 SP1 with an Intel Core i3 3.20GHz and 4GB RAM, or OS X 10.10 with an Intel Core i5 1.8GHz and 2GB RAM. Works with Zoom, Microsoft Teams, Google Meet, Skype, Webex and GoToMeeting.

Care and Cleaning

Wipe with a soft, dry cloth. Clean the lens with a lens cloth only.

Delivery and Returns

Standard UK delivery applies. See our Delivery and Returns page for full details.

• What is the IPEVO TOTEM 120 (NX 120-A)?
  The IPEVO TOTEM 120 (NX 120-A) is a conference camera, demonstration camera and document camera in one device. It has two 8MP lenses, a 120-degree wide lens and an 80-degree autofocus lens, and records up to 3840 x 2160 at 30fps.
• Can the TOTEM 120 be used as a document camera?
  Yes, the TOTEM 120 has a dedicated Document Camera Mode. Pointing downwards, the 80-degree autofocus lens focuses from 10cm and captures up to US Letter size, close to A4, which IPEVO recommends for text. The 120-degree lens covers up to tabloid size.
• Does the TOTEM 120 work with Microsoft Teams and Zoom?
  Yes, the TOTEM 120 works with Microsoft Teams, Zoom, Google Meet, Skype, Webex and GoToMeeting. It is plug and play through its attached USB-C cable on Windows, Mac and Chromebook computers, so it appears as a standard camera and microphone.
• What do AI Stage and AI Voice do?
  AI Stage automatically frames one or more people at the centre of the image, and AI Voice reduces background noise while enhancing the speaker's voice. Both are turned on or off with buttons on the camera, so no extra software is needed during a meeting.
• Who is the TOTEM 120 designed for?
  The TOTEM 120 is designed for workplace teams running hybrid meetings, training and demonstrations. It suits huddle rooms of two or three people, trainers who show objects or paperwork, and IT teams wanting one camera that covers meetings and document sharing for adult staff.
• Is the NX 120-A the same as the TOTEM 120?
  Yes, NX 120-A is the model name UK distributors and retailers use for the IPEVO TOTEM 120 Multimodal Collaboration Camera. The 2023 Taiwan Excellence Award listing also names it NX-120A alongside the TOTEM name.
• What warranty does the TOTEM 120 have?
  The IPEVO TOTEM 120 has a two-year warranty from the date of purchase, according to IPEVO's specification. This does not affect your statutory rights. Keep your proof of purchase from The Dyslexia Shop in case you need to make a claim.
